Four Column CRANE Cast Iron Radiators - 960mm height
- Description

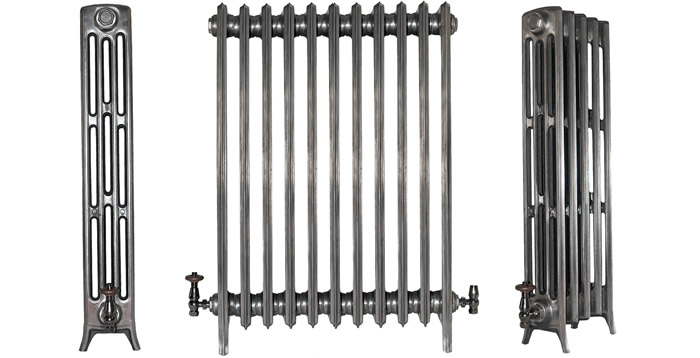

CRANE Cast Iron Radiators in 4 Columns are available in 5 heights. This is the tallest of this popular series of cast iron radiators at 960mm or 38 inches giving a huge heat output making a striking feature in any room.

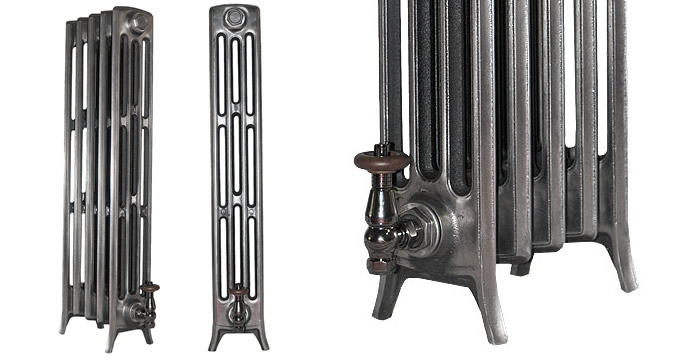

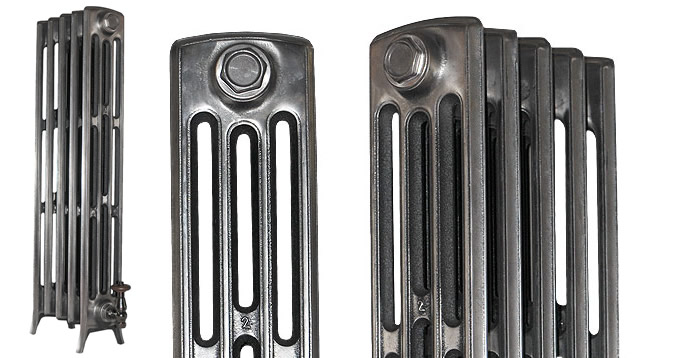

CRANE 4 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 4 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than CRANE 4 Column Cast Iron Radiators, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data

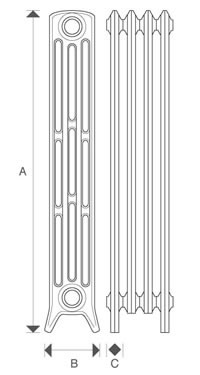

Section Height A 955mm BTU's per section 540 Watts per section 158 Radiator Depth B 144mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE 4 Column 960mm Cast Iron Radiator
Radiator Height:
955mm
( 37 5/8 “ )
Radiator Depth:
144mm
( 5 5/8 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's C4C-960-03 3 210mm 8 1/4 “ 375 Watts 1278 BTU's 474 Watts 1620 BTU's C4C-960-04 4 270mm 10 5/8 “ 500 Watts 1704 BTU's 632 Watts 2160 BTU's C4C-960-05 5 330mm 13 “ 625 Watts 2130 BTU's 790 Watts 2700 BTU's C4C-960-06 6 390mm 15 3/8 “ 750 Watts 2556 BTU's 948 Watts 3240 BTU's C4C-960-07 7 450mm 17 3/4 “ 875 Watts 2982 BTU's 1106 Watts 3780 BTU's C4C-960-08 8 510mm 20 1/8 “ 1000 Watts 3408 BTU's 1264 Watts 4320 BTU's C4C-960-09 9 570mm 22 1/2 “ 1125 Watts 3834 BTU's 1422 Watts 4860 BTU's C4C-960-10 10 630mm 24 3/4 “ 1250 Watts 4260 BTU's 1580 Watts 5400 BTU's C4C-960-11 11 690mm 27 1/8 “ 1375 Watts 4686 BTU's 1738 Watts 5940 BTU's C4C-960-12 12 750mm 29 1/2 “ 1500 Watts 5112 BTU's 1896 Watts 6480 BTU's C4C-960-13 13 810mm 31 7/8 “ 1625 Watts 5538 BTU's 2054 Watts 7020 BTU's C4C-960-14 14 870mm 34 1/4 “ 1750 Watts 5964 BTU's 2212 Watts 7560 BTU's C4C-960-15 15 930mm 36 5/8 “ 1875 Watts 6390 BTU's 2370 Watts 8100 BTU's C4C-960-16 16 990mm 39 “ 2000 Watts 6816 BTU's 2528 Watts 8640 BTU's C4C-960-17 17 1050mm 41 3/8 “ 2125 Watts 7242 BTU's 2686 Watts 9180 BTU's C4C-960-18 18 1110mm 43 3/4 “ 2250 Watts 7668 BTU's 2844 Watts 9720 BTU's C4C-960-19 19 1170mm 46 1/8 “ 2375 Watts 8094 BTU's 3002 Watts 10260 BTU's C4C-960-20 20 1230mm 48 3/8 “ 2500 Watts 8520 BTU's 3160 Watts 10800 BTU's C4C-960-21 21 1290mm 50 3/4 “ 2625 Watts 8946 BTU's 3318 Watts 11340 BTU's C4C-960-22 22 1350mm 53 1/8 “ 2750 Watts 9372 BTU's 3476 Watts 11880 BTU's C4C-960-23 23 1410mm 55 1/2 “ 2875 Watts 9798 BTU's 3634 Watts 12420 BTU's C4C-960-24 24 1470mm 57 7/8 “ 3000 Watts 10224 BTU's 3792 Watts 12960 BTU's C4C-960-25 25 1530mm 60 1/4 “ 3125 Watts 10650 BTU's 3950 Watts 13500 BTU's C4C-960-26 26 1590mm 62 5/8 “ 3250 Watts 11076 BTU's 4108 Watts 14040 BTU's C4C-960-27 27 1650mm 65 “ 3375 Watts 11502 BTU's 4266 Watts 14580 BTU's C4C-960-28 28 1710mm 67 3/8 “ 3500 Watts 11928 BTU's 4424 Watts 15120 BTU's C4C-960-29 29 1770mm 69 5/8 “ 3625 Watts 12354 BTU's 4582 Watts 15660 BTU's C4C-960-30 30 1830mm 72 “ 3750 Watts 12780 BTU's 4740 Watts 16200 BTU's C4C-960-31 31 1890mm 74 3/8 “ 3875 Watts 13206 BTU's 4898 Watts 16740 BTU's C4C-960-32 32 1950mm 76 3/4 “ 4000 Watts 13632 BTU's 5056 Watts 17280 BTU's C4C-960-33 33 2010mm 79 1/8 “ 4125 Watts 14058 BTU's 5214 Watts 17820 BTU's C4C-960-34 34 2070mm 81 1/2 “ 4250 Watts 14484 BTU's 5372 Watts 18360 BTU's C4C-960-35 35 2130mm 83 7/8 “ 4375 Watts 14910 BTU's 5530 Watts 18900 BTU's C4C-960-36 36 2190mm 86 1/4 “ 4500 Watts 15336 BTU's 5688 Watts 19440 BTU's C4C-960-37 37 2250mm 88 5/8 “ 4625 Watts 15762 BTU's 5846 Watts 19980 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
