Six Column CRANE Cast Iron Radiators - 485mm height
- Description
Cast Iron Radiators from CRANE traditional 6 column series are available in 4 heights. These 485mm CRANE Cast Iron Radiators are the lowest height in this series, but have a great heat output.

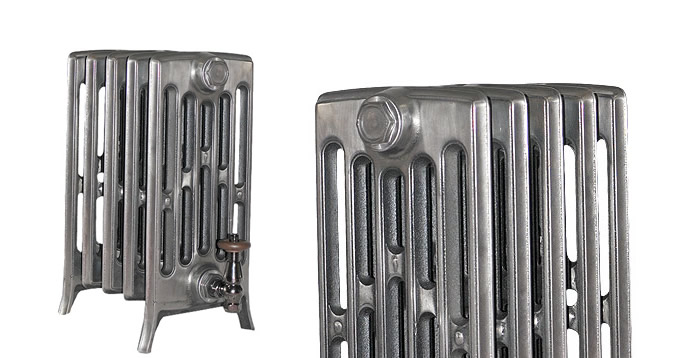

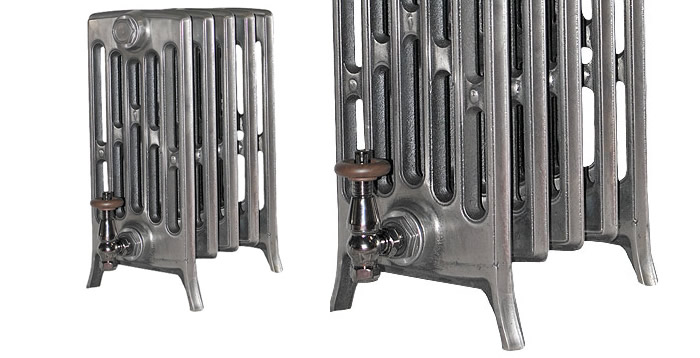

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data
Section Height A 485mm BTU's per section 406 Watts per section 119 Radiator Depth B 221mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-

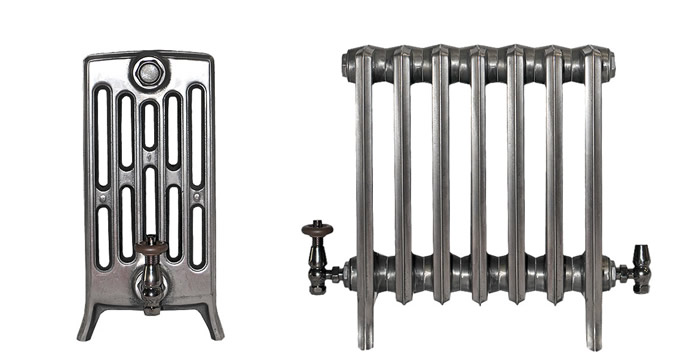

CRANE 6 Column 485mm Cast Iron Radiator
Radiator Height:
485mm
( 19 1/8 “ )
Radiator Depth:
221mm
( 8 3/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's C6C-485-03 3 210mm 8 1/4 “ 282 Watts 963 BTU's 357 Watts 1218 BTU's C6C-485-04 4 270mm 10 5/8 “ 376 Watts 1284 BTU's 476 Watts 1624 BTU's C6C-485-05 5 330mm 13 “ 470 Watts 1605 BTU's 595 Watts 2030 BTU's C6C-485-06 6 390mm 15 3/8 “ 564 Watts 1926 BTU's 714 Watts 2436 BTU's C6C-485-07 7 450mm 17 3/4 “ 658 Watts 2247 BTU's 833 Watts 2842 BTU's C6C-485-08 8 510mm 20 1/8 “ 752 Watts 2568 BTU's 952 Watts 3248 BTU's C6C-485-09 9 570mm 22 1/2 “ 846 Watts 2889 BTU's 1071 Watts 3654 BTU's C6C-485-10 10 630mm 24 3/4 “ 940 Watts 3210 BTU's 1190 Watts 4060 BTU's C6C-485-11 11 690mm 27 1/8 “ 1034 Watts 3531 BTU's 1309 Watts 4466 BTU's C6C-485-12 12 750mm 29 1/2 “ 1128 Watts 3852 BTU's 1428 Watts 4872 BTU's C6C-485-13 13 810mm 31 7/8 “ 1222 Watts 4173 BTU's 1547 Watts 5278 BTU's C6C-485-14 14 870mm 34 1/4 “ 1316 Watts 4494 BTU's 1666 Watts 5684 BTU's C6C-485-15 15 930mm 36 5/8 “ 1410 Watts 4815 BTU's 1785 Watts 6090 BTU's C6C-485-16 16 990mm 39 “ 1504 Watts 5136 BTU's 1904 Watts 6496 BTU's C6C-485-17 17 1050mm 41 3/8 “ 1598 Watts 5457 BTU's 2023 Watts 6902 BTU's C6C-485-18 18 1110mm 43 3/4 “ 1692 Watts 5778 BTU's 2142 Watts 7308 BTU's C6C-485-19 19 1170mm 46 1/8 “ 1786 Watts 6099 BTU's 2261 Watts 7714 BTU's C6C-485-20 20 1230mm 48 3/8 “ 1880 Watts 6420 BTU's 2380 Watts 8120 BTU's C6C-485-21 21 1290mm 50 3/4 “ 1974 Watts 6741 BTU's 2499 Watts 8526 BTU's C6C-485-22 22 1350mm 53 1/8 “ 2068 Watts 7062 BTU's 2618 Watts 8932 BTU's C6C-485-23 23 1410mm 55 1/2 “ 2162 Watts 7383 BTU's 2737 Watts 9338 BTU's C6C-485-24 24 1470mm 57 7/8 “ 2256 Watts 7704 BTU's 2856 Watts 9744 BTU's C6C-485-25 25 1530mm 60 1/4 “ 2350 Watts 8025 BTU's 2975 Watts 10150 BTU's C6C-485-26 26 1590mm 62 5/8 “ 2444 Watts 8346 BTU's 3094 Watts 10556 BTU's C6C-485-27 27 1650mm 65 “ 2538 Watts 8667 BTU's 3213 Watts 10962 BTU's C6C-485-28 28 1710mm 67 3/8 “ 2632 Watts 8988 BTU's 3332 Watts 11368 BTU's C6C-485-29 29 1770mm 69 5/8 “ 2726 Watts 9309 BTU's 3451 Watts 11774 BTU's C6C-485-30 30 1830mm 72 “ 2820 Watts 9630 BTU's 3570 Watts 12180 BTU's C6C-485-31 31 1890mm 74 3/8 “ 2914 Watts 9951 BTU's 3689 Watts 12586 BTU's C6C-485-32 32 1950mm 76 3/4 “ 3008 Watts 10272 BTU's 3808 Watts 12992 BTU's C6C-485-33 33 2010mm 79 1/8 “ 3102 Watts 10593 BTU's 3927 Watts 13398 BTU's C6C-485-34 34 2070mm 81 1/2 “ 3196 Watts 10914 BTU's 4046 Watts 13804 BTU's C6C-485-35 35 2130mm 83 7/8 “ 3290 Watts 11235 BTU's 4165 Watts 14210 BTU's C6C-485-36 36 2190mm 86 1/4 “ 3384 Watts 11556 BTU's 4284 Watts 14616 BTU's C6C-485-37 37 2250mm 88 5/8 “ 3478 Watts 11877 BTU's 4403 Watts 15022 BTU's - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
