Six Column CRANE Cast Iron Radiators - 960mm height
- Description

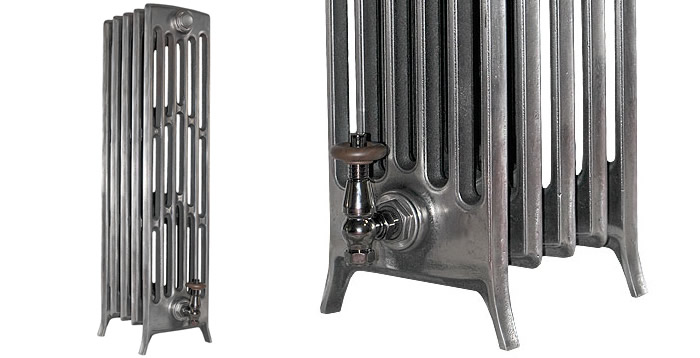

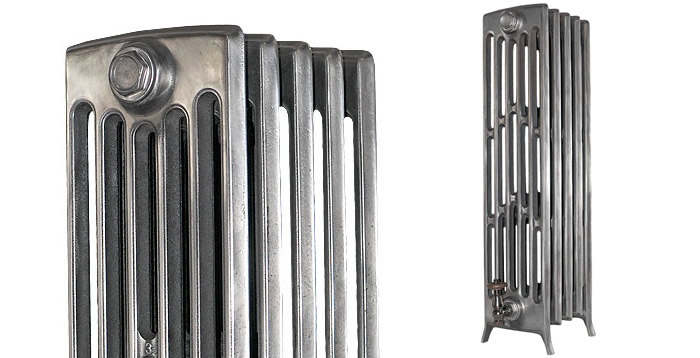

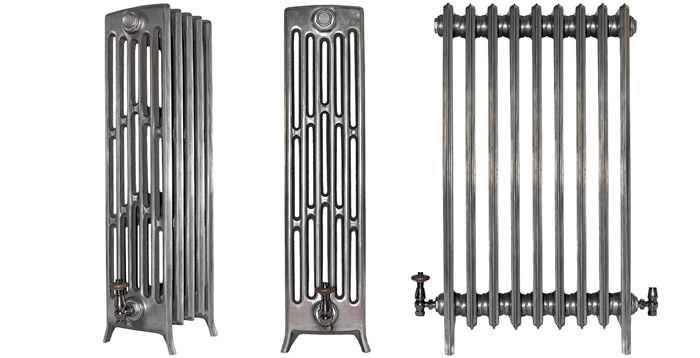

Cast Iron Radiators from our popular CRANE 6 Column Series have a huge heat output. As the tallest in the range, the CRANE 6 Column 960mm or 38inches tall benefit from the largest heat output for a column cast iron radiator manufactured in Europe.
CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's and are now available in 4 traditional heights. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data

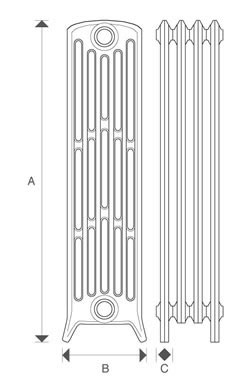

Section Height A 960mm BTU's per section 795 Watts per section 233 Radiator Depth B 221mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE 6 Column 960mm Cast Iron Radiator
Radiator Height:
960mm
( 37 3/4 “ )
Radiator Depth:
221mm
( 8 3/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's C6C-960-03 3 210mm 8 1/4 “ 552 Watts 1884 BTU's 699 Watts 2385 BTU's C6C-960-04 4 270mm 10 5/8 “ 736 Watts 2512 BTU's 932 Watts 3180 BTU's C6C-960-05 5 330mm 13 “ 920 Watts 3140 BTU's 1165 Watts 3975 BTU's C6C-960-06 6 390mm 15 3/8 “ 1104 Watts 3768 BTU's 1398 Watts 4770 BTU's C6C-960-07 7 450mm 17 3/4 “ 1288 Watts 4396 BTU's 1631 Watts 5565 BTU's C6C-960-08 8 510mm 20 1/8 “ 1472 Watts 5024 BTU's 1864 Watts 6360 BTU's C6C-960-09 9 570mm 22 1/2 “ 1656 Watts 5652 BTU's 2097 Watts 7155 BTU's C6C-960-10 10 630mm 24 3/4 “ 1840 Watts 6280 BTU's 2330 Watts 7950 BTU's C6C-960-11 11 690mm 27 1/8 “ 2024 Watts 6908 BTU's 2563 Watts 8745 BTU's C6C-960-12 12 750mm 29 1/2 “ 2208 Watts 7536 BTU's 2796 Watts 9540 BTU's C6C-960-13 13 810mm 31 7/8 “ 2392 Watts 8164 BTU's 3029 Watts 10335 BTU's C6C-960-14 14 870mm 34 1/4 “ 2576 Watts 8792 BTU's 3262 Watts 11130 BTU's C6C-960-15 15 930mm 36 5/8 “ 2760 Watts 9420 BTU's 3495 Watts 11925 BTU's C6C-960-16 16 990mm 39 “ 2944 Watts 10048 BTU's 3728 Watts 12720 BTU's C6C-960-17 17 1050mm 41 3/8 “ 3128 Watts 10676 BTU's 3961 Watts 13515 BTU's C6C-960-18 18 1110mm 43 3/4 “ 3312 Watts 11304 BTU's 4194 Watts 14310 BTU's C6C-960-19 19 1170mm 46 1/8 “ 3496 Watts 11932 BTU's 4427 Watts 15105 BTU's C6C-960-20 20 1230mm 48 3/8 “ 3680 Watts 12560 BTU's 4660 Watts 15900 BTU's C6C-960-21 21 1290mm 50 3/4 “ 3864 Watts 13188 BTU's 4893 Watts 16695 BTU's C6C-960-22 22 1350mm 53 1/8 “ 4048 Watts 13816 BTU's 5126 Watts 17490 BTU's C6C-960-23 23 1410mm 55 1/2 “ 4232 Watts 14444 BTU's 5359 Watts 18285 BTU's C6C-960-24 24 1470mm 57 7/8 “ 4416 Watts 15072 BTU's 5592 Watts 19080 BTU's C6C-960-25 25 1530mm 60 1/4 “ 4600 Watts 15700 BTU's 5825 Watts 19875 BTU's C6C-960-26 26 1590mm 62 5/8 “ 4784 Watts 16328 BTU's 6058 Watts 20670 BTU's C6C-960-27 27 1650mm 65 “ 4968 Watts 16956 BTU's 6291 Watts 21465 BTU's C6C-960-28 28 1710mm 67 3/8 “ 5152 Watts 17584 BTU's 6524 Watts 22260 BTU's C6C-960-29 29 1770mm 69 5/8 “ 5336 Watts 18212 BTU's 6757 Watts 23055 BTU's C6C-960-30 30 1830mm 72 “ 5520 Watts 18840 BTU's 6990 Watts 23850 BTU's C6C-960-31 31 1890mm 74 3/8 “ 5704 Watts 19468 BTU's 7223 Watts 24645 BTU's C6C-960-32 32 1950mm 76 3/4 “ 5888 Watts 20096 BTU's 7456 Watts 25440 BTU's C6C-960-33 33 2010mm 79 1/8 “ 6072 Watts 20724 BTU's 7689 Watts 26235 BTU's C6C-960-34 34 2070mm 81 1/2 “ 6256 Watts 21352 BTU's 7922 Watts 27030 BTU's C6C-960-35 35 2130mm 83 7/8 “ 6440 Watts 21980 BTU's 8155 Watts 27825 BTU's C6C-960-36 36 2190mm 86 1/4 “ 6624 Watts 22608 BTU's 8388 Watts 28620 BTU's C6C-960-37 37 2250mm 88 5/8 “ 6808 Watts 23236 BTU's 8621 Watts 29415 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
