CRANE Baroque Cast Iron Radiators - 510mm height
- Description
Cast Iron Radiators from the CRANE® Baroque series are available in four heights. The 510mm or 20 inch casting is the smallest cast iron radiator height in this historic series.

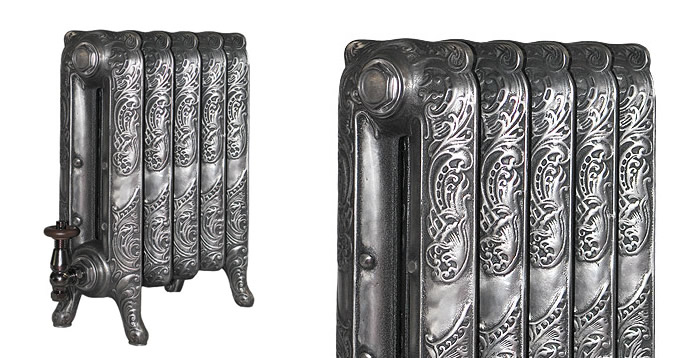

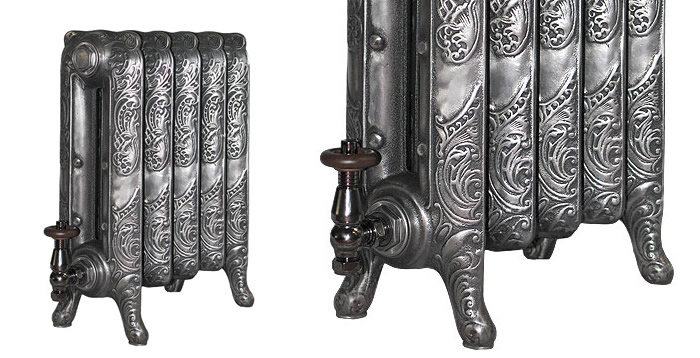

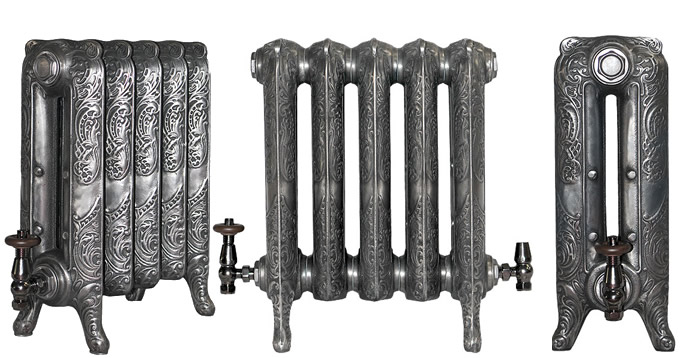

These beautiful cast iron radiators feature two columns of elegant scalloped decoration from the late Victorian period, delicately cast and with exquisite details. The stylised bohemian foliage extends from the middle of each section to the bottom of the feet and across the shoulders of each CRANE Cast Iron Radiator. A timeless design classic, made using original moulds using traditional techniques. CRANE Cast Iron Radiators have been used in stately homes and the finest homes since the early years of the 20th century.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data
Section Height A 510mm BTU's per section 317 Watts per section 93 Radiator Depth B 184.5mm Section Length C 76mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE Baroque 510mm Cast Iron Radiators
Radiator Height:
510mm
( 20 1/8 “ )
Radiator Depth:
184.5mm
( 7 1/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's CBQ-510-03 3 258mm 10 1/8 “ 222 Watts 756 BTU's 279 Watts 951 BTU's CBQ-510-04 4 334mm 13 1/8 “ 296 Watts 1008 BTU's 372 Watts 1268 BTU's CBQ-510-05 5 410mm 16 1/8 “ 370 Watts 1260 BTU's 465 Watts 1585 BTU's CBQ-510-06 6 486mm 19 1/8 “ 444 Watts 1512 BTU's 558 Watts 1902 BTU's CBQ-510-07 7 562mm 22 1/8 “ 518 Watts 1764 BTU's 651 Watts 2219 BTU's CBQ-510-08 8 638mm 25 1/8 “ 592 Watts 2016 BTU's 744 Watts 2536 BTU's CBQ-510-09 9 714mm 28 1/8 “ 666 Watts 2268 BTU's 837 Watts 2853 BTU's CBQ-510-10 10 790mm 31 1/8 “ 740 Watts 2520 BTU's 930 Watts 3170 BTU's CBQ-510-11 11 866mm 34 1/8 “ 814 Watts 2772 BTU's 1023 Watts 3487 BTU's CBQ-510-12 12 942mm 37 1/8 “ 888 Watts 3024 BTU's 1116 Watts 3804 BTU's CBQ-510-13 13 1018mm 40 1/8 “ 962 Watts 3276 BTU's 1209 Watts 4121 BTU's CBQ-510-14 14 1094mm 43 1/8 “ 1036 Watts 3528 BTU's 1302 Watts 4438 BTU's CBQ-510-15 15 1170mm 46 1/8 “ 1110 Watts 3780 BTU's 1395 Watts 4755 BTU's CBQ-510-16 16 1246mm 49 “ 1184 Watts 4032 BTU's 1488 Watts 5072 BTU's CBQ-510-17 17 1322mm 52 “ 1258 Watts 4284 BTU's 1581 Watts 5389 BTU's CBQ-510-18 18 1398mm 55 “ 1332 Watts 4536 BTU's 1674 Watts 5706 BTU's CBQ-510-19 19 1474mm 58 “ 1406 Watts 4788 BTU's 1767 Watts 6023 BTU's CBQ-510-20 20 1550mm 61 “ 1480 Watts 5040 BTU's 1860 Watts 6340 BTU's CBQ-510-21 21 1626mm 64 “ 1554 Watts 5292 BTU's 1953 Watts 6657 BTU's CBQ-510-22 22 1702mm 67 “ 1628 Watts 5544 BTU's 2046 Watts 6974 BTU's CBQ-510-23 23 1778mm 70 “ 1702 Watts 5796 BTU's 2139 Watts 7291 BTU's CBQ-510-24 24 1854mm 73 “ 1776 Watts 6048 BTU's 2232 Watts 7608 BTU's CBQ-510-25 25 1930mm 76 “ 1850 Watts 6300 BTU's 2325 Watts 7925 BTU's CBQ-510-26 26 2006mm 79 “ 1924 Watts 6552 BTU's 2418 Watts 8242 BTU's CBQ-510-27 27 2082mm 82 “ 1998 Watts 6804 BTU's 2511 Watts 8559 BTU's CBQ-510-28 28 2158mm 85 “ 2072 Watts 7056 BTU's 2604 Watts 8876 BTU's CBQ-510-29 29 2234mm 88 “ 2146 Watts 7308 BTU's 2697 Watts 9193 BTU's CBQ-510-30 30 2310mm 91 “ 2220 Watts 7560 BTU's 2790 Watts 9510 BTU's CBQ-510-31 31 2386mm 93 7/8 “ 2294 Watts 7812 BTU's 2883 Watts 9827 BTU's CBQ-510-32 32 2462mm 96 7/8 “ 2368 Watts 8064 BTU's 2976 Watts 10144 BTU's CBQ-510-33 33 2538mm 99 7/8 “ 2442 Watts 8316 BTU's 3069 Watts 10461 BTU's CBQ-510-34 34 2614mm 102 7/8 “ 2516 Watts 8568 BTU's 3162 Watts 10778 BTU's CBQ-510-35 35 2690mm 105 7/8 “ 2590 Watts 8820 BTU's 3255 Watts 11095 BTU's CBQ-510-36 36 2766mm 108 7/8 “ 2664 Watts 9072 BTU's 3348 Watts 11412 BTU's CBQ-510-37 37 2842mm 111 7/8 “ 2738 Watts 9324 BTU's 3441 Watts 11729 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
