CRANE Rococo Cast Iron Radiators - 970mm height
- Description

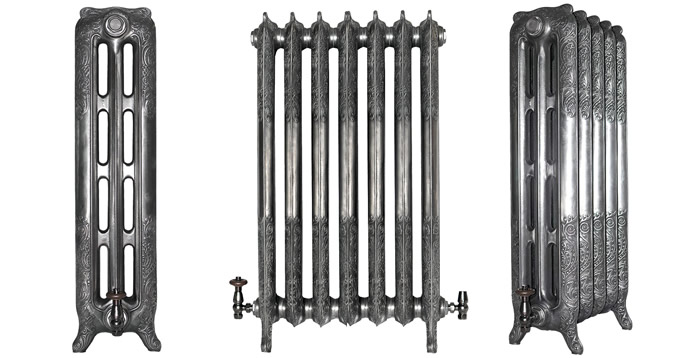

Cast Iron Radiators from the CRANE® Rococo series are available in two heights. The 970mm tall or 38 inch CRANE Rococo Cast Iron Radiators combine beauty with a huge heat output meaning that even the largest room can be heated with a beautiful CRANE Radiator.

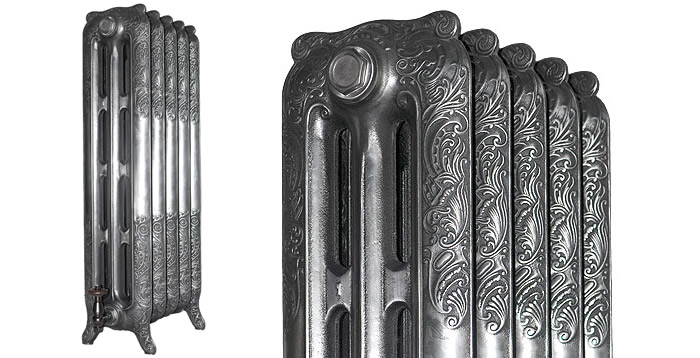

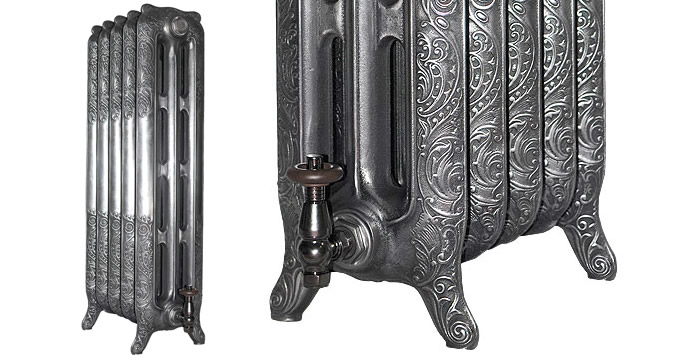

These beautiful cast iron radiators feature elegant scalloped decoration from the Edwardian period, delicately cast and with exquisite details. The stylised bohemian foliage extends from the middle of each section to the bottom of the feet and across the shoulders of each CRANE Radiator. A timeless design classic used in stately homes and grand mansions across Europe since the early years of the 20th century.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data
Section Height A 961mm BTU's per section 775 Watts per section 227 Radiator Depth B 225mm Section Length C 76mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE Rococo 970mm Cast Iron Radiators
Radiator Height:
961mm
( 37 7/8 “ )
Radiator Depth:
225mm
( 8 7/8 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's CRC-970-03 3 258mm 10 1/8 “ 537 Watts 1833 BTU's 681 Watts 2325 BTU's CRC-970-04 4 334mm 13 1/8 “ 716 Watts 2444 BTU's 908 Watts 3100 BTU's CRC-970-05 5 410mm 16 1/8 “ 895 Watts 3055 BTU's 1135 Watts 3875 BTU's CRC-970-06 6 486mm 19 1/8 “ 1074 Watts 3666 BTU's 1362 Watts 4650 BTU's CRC-970-07 7 562mm 22 1/8 “ 1253 Watts 4277 BTU's 1589 Watts 5425 BTU's CRC-970-08 8 638mm 25 1/8 “ 1432 Watts 4888 BTU's 1816 Watts 6200 BTU's CRC-970-09 9 714mm 28 1/8 “ 1611 Watts 5499 BTU's 2043 Watts 6975 BTU's CRC-970-10 10 790mm 31 1/8 “ 1790 Watts 6110 BTU's 2270 Watts 7750 BTU's CRC-970-11 11 866mm 34 1/8 “ 1969 Watts 6721 BTU's 2497 Watts 8525 BTU's CRC-970-12 12 942mm 37 1/8 “ 2148 Watts 7332 BTU's 2724 Watts 9300 BTU's CRC-970-13 13 1018mm 40 1/8 “ 2327 Watts 7943 BTU's 2951 Watts 10075 BTU's CRC-970-14 14 1094mm 43 1/8 “ 2506 Watts 8554 BTU's 3178 Watts 10850 BTU's CRC-970-15 15 1170mm 46 1/8 “ 2685 Watts 9165 BTU's 3405 Watts 11625 BTU's CRC-970-16 16 1246mm 49 “ 2864 Watts 9776 BTU's 3632 Watts 12400 BTU's CRC-970-17 17 1322mm 52 “ 3043 Watts 10387 BTU's 3859 Watts 13175 BTU's CRC-970-18 18 1398mm 55 “ 3222 Watts 10998 BTU's 4086 Watts 13950 BTU's CRC-970-19 19 1474mm 58 “ 3401 Watts 11609 BTU's 4313 Watts 14725 BTU's CRC-970-20 20 1550mm 61 “ 3580 Watts 12220 BTU's 4540 Watts 15500 BTU's CRC-970-21 21 1626mm 64 “ 3759 Watts 12831 BTU's 4767 Watts 16275 BTU's CRC-970-22 22 1702mm 67 “ 3938 Watts 13442 BTU's 4994 Watts 17050 BTU's CRC-970-23 23 1778mm 70 “ 4117 Watts 14053 BTU's 5221 Watts 17825 BTU's CRC-970-24 24 1854mm 73 “ 4296 Watts 14664 BTU's 5448 Watts 18600 BTU's CRC-970-25 25 1930mm 76 “ 4475 Watts 15275 BTU's 5675 Watts 19375 BTU's CRC-970-26 26 2006mm 79 “ 4654 Watts 15886 BTU's 5902 Watts 20150 BTU's CRC-970-27 27 2082mm 82 “ 4833 Watts 16497 BTU's 6129 Watts 20925 BTU's CRC-970-28 28 2158mm 85 “ 5012 Watts 17108 BTU's 6356 Watts 21700 BTU's CRC-970-29 29 2234mm 88 “ 5191 Watts 17719 BTU's 6583 Watts 22475 BTU's CRC-970-30 30 2310mm 91 “ 5370 Watts 18330 BTU's 6810 Watts 23250 BTU's CRC-970-31 31 2386mm 93 7/8 “ 5549 Watts 18941 BTU's 7037 Watts 24025 BTU's CRC-970-32 32 2462mm 96 7/8 “ 5728 Watts 19552 BTU's 7264 Watts 24800 BTU's CRC-970-33 33 2538mm 99 7/8 “ 5907 Watts 20163 BTU's 7491 Watts 25575 BTU's CRC-970-34 34 2614mm 102 7/8 “ 6086 Watts 20774 BTU's 7718 Watts 26350 BTU's CRC-970-35 35 2690mm 105 7/8 “ 6265 Watts 21385 BTU's 7945 Watts 27125 BTU's CRC-970-36 36 2766mm 108 7/8 “ 6444 Watts 21996 BTU's 8172 Watts 27900 BTU's CRC-970-37 37 2842mm 111 7/8 “ 6623 Watts 22607 BTU's 8399 Watts 28675 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
