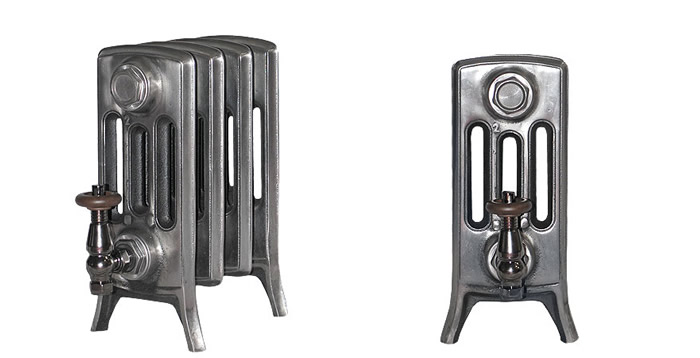

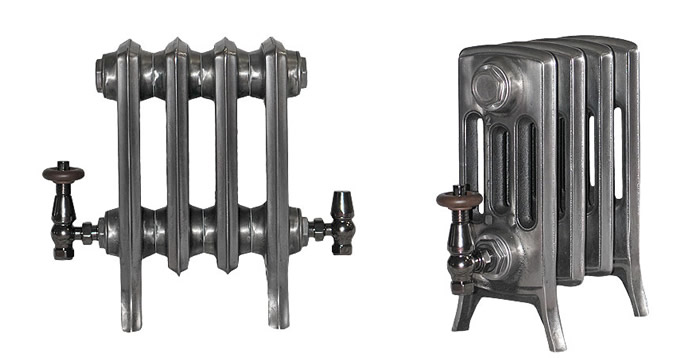

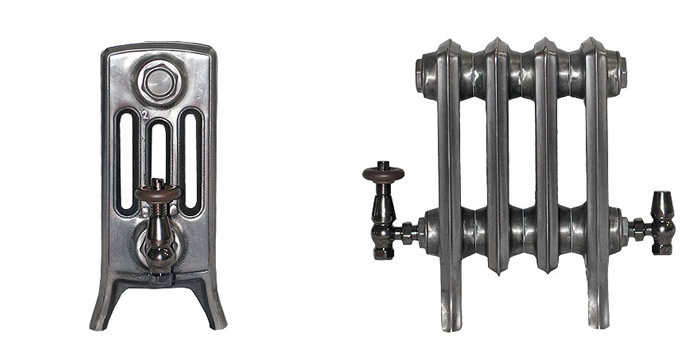

Cast Iron Radiators from our CRANE 4 Column series are available in 5 traditional heights. At 360mm or 14inches these Cast Iron Radiators are the smallest in this series.
CRANE 4 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 4 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than CRANE 4 Column Cast Iron Radiators, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.

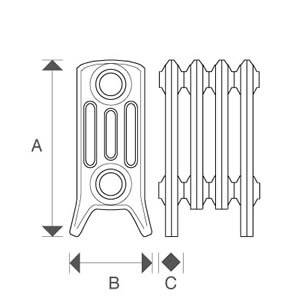

Section Height A | 355mm |
BTU's per section | 201 |
Watts per section | 59 |
Radiator Depth B | 144mm |
Section Length C | 60mm |
Carbon (C) | 3.40%-3.85% |
Silicon (Si) | 1.80%-2.10% |
Sulfur (S) | <0.06% |
Phosphorus (P) | <0.10% |
Manganese (Mn) | 0.40%-0.85% |
Chromium (Cr) | <0.07% |
Copper (Cu) | <0.08% |
Tensile Variance | <0.01% |
Section Width Tolerance | <0.1% |
Section Height Tolerance | <0.1% |
Section Perpendicular Tolerance | <0.1% |
Ferrite Microstructure % | <0.190% |
Peralite Microstructure % | <0.190% |
Cementite Microstructure % | <0.190% |
Nodule Microstructure adet/mm | 100-125 |
Nodule Maximum size Q/mm | 8 |
Micro Nodularity % | 80% + |
Hardness (HB) | 150-250 |
Tensile Strength N/mm | 400 + |
Elongation | 3+ |
Sand Tempreture on Casting | 20°c-45°c |
Casting Humidity | 3.2%-4.0% |
Wet Compressive Strength | 2100-2500gr/cm sq |
Tensile Strength | 20-30gr/cm sq |
Shatter Index | 67-77% |
Volatile Inclusions | <0.001% |
Radiator Height: | 355mm | ( 14 “ ) |
Radiator Depth: | 144mm | ( 5 5/8 “ ) |
Product | Sections | Radiator Width (L) | Heat Output (ΔT=50) | Heat Output (ΔT=60) | |||
---|---|---|---|---|---|---|---|
Code | (No.) | mm | Inches | Watts | BTU's | Watts | BTU's |
C4C-360-03 | 3 | 210mm | 8 1/4 “ | 141 Watts | 480 BTU's | 177 Watts | 603 BTU's |
C4C-360-04 | 4 | 270mm | 10 5/8 “ | 188 Watts | 640 BTU's | 236 Watts | 804 BTU's |
C4C-360-05 | 5 | 330mm | 13 “ | 235 Watts | 800 BTU's | 295 Watts | 1005 BTU's |
C4C-360-06 | 6 | 390mm | 15 3/8 “ | 282 Watts | 960 BTU's | 354 Watts | 1206 BTU's |
C4C-360-07 | 7 | 450mm | 17 3/4 “ | 329 Watts | 1120 BTU's | 413 Watts | 1407 BTU's |
C4C-360-08 | 8 | 510mm | 20 1/8 “ | 376 Watts | 1280 BTU's | 472 Watts | 1608 BTU's |
C4C-360-09 | 9 | 570mm | 22 1/2 “ | 423 Watts | 1440 BTU's | 531 Watts | 1809 BTU's |
C4C-360-10 | 10 | 630mm | 24 3/4 “ | 470 Watts | 1600 BTU's | 590 Watts | 2010 BTU's |
C4C-360-11 | 11 | 690mm | 27 1/8 “ | 517 Watts | 1760 BTU's | 649 Watts | 2211 BTU's |
C4C-360-12 | 12 | 750mm | 29 1/2 “ | 564 Watts | 1920 BTU's | 708 Watts | 2412 BTU's |
C4C-360-13 | 13 | 810mm | 31 7/8 “ | 611 Watts | 2080 BTU's | 767 Watts | 2613 BTU's |
C4C-360-14 | 14 | 870mm | 34 1/4 “ | 658 Watts | 2240 BTU's | 826 Watts | 2814 BTU's |
C4C-360-15 | 15 | 930mm | 36 5/8 “ | 705 Watts | 2400 BTU's | 885 Watts | 3015 BTU's |
C4C-360-16 | 16 | 990mm | 39 “ | 752 Watts | 2560 BTU's | 944 Watts | 3216 BTU's |
C4C-360-17 | 17 | 1050mm | 41 3/8 “ | 799 Watts | 2720 BTU's | 1003 Watts | 3417 BTU's |
C4C-360-18 | 18 | 1110mm | 43 3/4 “ | 846 Watts | 2880 BTU's | 1062 Watts | 3618 BTU's |
C4C-360-19 | 19 | 1170mm | 46 1/8 “ | 893 Watts | 3040 BTU's | 1121 Watts | 3819 BTU's |
C4C-360-20 | 20 | 1230mm | 48 3/8 “ | 940 Watts | 3200 BTU's | 1180 Watts | 4020 BTU's |
C4C-360-21 | 21 | 1290mm | 50 3/4 “ | 987 Watts | 3360 BTU's | 1239 Watts | 4221 BTU's |
C4C-360-22 | 22 | 1350mm | 53 1/8 “ | 1034 Watts | 3520 BTU's | 1298 Watts | 4422 BTU's |
C4C-360-23 | 23 | 1410mm | 55 1/2 “ | 1081 Watts | 3680 BTU's | 1357 Watts | 4623 BTU's |
C4C-360-24 | 24 | 1470mm | 57 7/8 “ | 1128 Watts | 3840 BTU's | 1416 Watts | 4824 BTU's |
C4C-360-25 | 25 | 1530mm | 60 1/4 “ | 1175 Watts | 4000 BTU's | 1475 Watts | 5025 BTU's |
C4C-360-26 | 26 | 1590mm | 62 5/8 “ | 1222 Watts | 4160 BTU's | 1534 Watts | 5226 BTU's |
C4C-360-27 | 27 | 1650mm | 65 “ | 1269 Watts | 4320 BTU's | 1593 Watts | 5427 BTU's |
C4C-360-28 | 28 | 1710mm | 67 3/8 “ | 1316 Watts | 4480 BTU's | 1652 Watts | 5628 BTU's |
C4C-360-29 | 29 | 1770mm | 69 5/8 “ | 1363 Watts | 4640 BTU's | 1711 Watts | 5829 BTU's |
C4C-360-30 | 30 | 1830mm | 72 “ | 1410 Watts | 4800 BTU's | 1770 Watts | 6030 BTU's |
C4C-360-31 | 31 | 1890mm | 74 3/8 “ | 1457 Watts | 4960 BTU's | 1829 Watts | 6231 BTU's |
C4C-360-32 | 32 | 1950mm | 76 3/4 “ | 1504 Watts | 5120 BTU's | 1888 Watts | 6432 BTU's |
C4C-360-33 | 33 | 2010mm | 79 1/8 “ | 1551 Watts | 5280 BTU's | 1947 Watts | 6633 BTU's |
C4C-360-34 | 34 | 2070mm | 81 1/2 “ | 1598 Watts | 5440 BTU's | 2006 Watts | 6834 BTU's |
C4C-360-35 | 35 | 2130mm | 83 7/8 “ | 1645 Watts | 5600 BTU's | 2065 Watts | 7035 BTU's |
C4C-360-36 | 36 | 2190mm | 86 1/4 “ | 1692 Watts | 5760 BTU's | 2124 Watts | 7236 BTU's |
C4C-360-37 | 37 | 2250mm | 88 5/8 “ | 1739 Watts | 5920 BTU's | 2183 Watts | 7437 BTU's |
![]() |
![]() |
![]() |
![]() |
![]() |
Antique Brass Manual Crocus Valve | Antique Brass Thermostatic Crocus Valve | Nickel Thermostatic Crocus Valve | Traditional Bleed Valves | CRANE Wall Stay |
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
