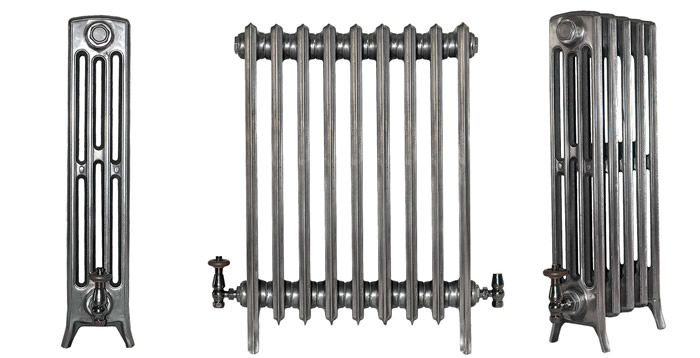

The 30 inch CRANE 4 Column Cast Iron Radiator at 760mm tall is perhaps the most popular of the 5 heights in our timeless range of CRANE 4 Column cast iron radiators.

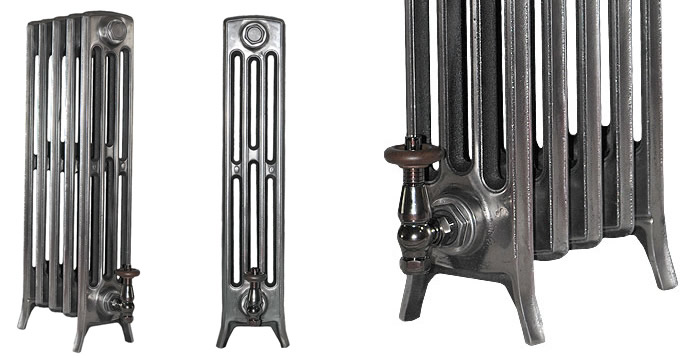

CRANE 4 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 4 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than CRANE 4 Column Cast Iron Radiators, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.

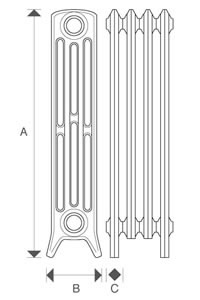

Section Height A | 762mm |
BTU's per section | 436 |
Watts per section | 128 |
Radiator Depth B | 144mm |
Section Length C | 60mm |
Carbon (C) | 3.40%-3.85% |
Silicon (Si) | 1.80%-2.10% |
Sulfur (S) | <0.06% |
Phosphorus (P) | <0.10% |
Manganese (Mn) | 0.40%-0.85% |
Chromium (Cr) | <0.07% |
Copper (Cu) | <0.08% |
Tensile Variance | <0.01% |
Section Width Tolerance | <0.1% |
Section Height Tolerance | <0.1% |
Section Perpendicular Tolerance | <0.1% |
Ferrite Microstructure % | <0.190% |
Peralite Microstructure % | <0.190% |
Cementite Microstructure % | <0.190% |
Nodule Microstructure adet/mm | 100-125 |
Nodule Maximum size Q/mm | 8 |
Micro Nodularity % | 80% + |
Hardness (HB) | 150-250 |
Tensile Strength N/mm | 400 + |
Elongation | 3+ |
Sand Tempreture on Casting | 20°c-45°c |
Casting Humidity | 3.2%-4.0% |
Wet Compressive Strength | 2100-2500gr/cm sq |
Tensile Strength | 20-30gr/cm sq |
Shatter Index | 67-77% |
Volatile Inclusions | <0.001% |
Radiator Height: | 762mm | ( 30 “ ) |
Radiator Depth: | 144mm | ( 5 5/8 “ ) |
Product | Sections | Radiator Width (L) | Heat Output (ΔT=50) | Heat Output (ΔT=60) | |||
---|---|---|---|---|---|---|---|
Code | (No.) | mm | Inches | Watts | BTU's | Watts | BTU's |
C4C-760-03 | 3 | 210mm | 8 1/4 “ | 303 Watts | 1032 BTU's | 384 Watts | 1308 BTU's |
C4C-760-04 | 4 | 270mm | 10 5/8 “ | 404 Watts | 1376 BTU's | 512 Watts | 1744 BTU's |
C4C-760-05 | 5 | 330mm | 13 “ | 505 Watts | 1720 BTU's | 640 Watts | 2180 BTU's |
C4C-760-06 | 6 | 390mm | 15 3/8 “ | 606 Watts | 2064 BTU's | 768 Watts | 2616 BTU's |
C4C-760-07 | 7 | 450mm | 17 3/4 “ | 707 Watts | 2408 BTU's | 896 Watts | 3052 BTU's |
C4C-760-08 | 8 | 510mm | 20 1/8 “ | 808 Watts | 2752 BTU's | 1024 Watts | 3488 BTU's |
C4C-760-09 | 9 | 570mm | 22 1/2 “ | 909 Watts | 3096 BTU's | 1152 Watts | 3924 BTU's |
C4C-760-10 | 10 | 630mm | 24 3/4 “ | 1010 Watts | 3440 BTU's | 1280 Watts | 4360 BTU's |
C4C-760-11 | 11 | 690mm | 27 1/8 “ | 1111 Watts | 3784 BTU's | 1408 Watts | 4796 BTU's |
C4C-760-12 | 12 | 750mm | 29 1/2 “ | 1212 Watts | 4128 BTU's | 1536 Watts | 5232 BTU's |
C4C-760-13 | 13 | 810mm | 31 7/8 “ | 1313 Watts | 4472 BTU's | 1664 Watts | 5668 BTU's |
C4C-760-14 | 14 | 870mm | 34 1/4 “ | 1414 Watts | 4816 BTU's | 1792 Watts | 6104 BTU's |
C4C-760-15 | 15 | 930mm | 36 5/8 “ | 1515 Watts | 5160 BTU's | 1920 Watts | 6540 BTU's |
C4C-760-16 | 16 | 990mm | 39 “ | 1616 Watts | 5504 BTU's | 2048 Watts | 6976 BTU's |
C4C-760-17 | 17 | 1050mm | 41 3/8 “ | 1717 Watts | 5848 BTU's | 2176 Watts | 7412 BTU's |
C4C-760-18 | 18 | 1110mm | 43 3/4 “ | 1818 Watts | 6192 BTU's | 2304 Watts | 7848 BTU's |
C4C-760-19 | 19 | 1170mm | 46 1/8 “ | 1919 Watts | 6536 BTU's | 2432 Watts | 8284 BTU's |
C4C-760-20 | 20 | 1230mm | 48 3/8 “ | 2020 Watts | 6880 BTU's | 2560 Watts | 8720 BTU's |
C4C-760-21 | 21 | 1290mm | 50 3/4 “ | 2121 Watts | 7224 BTU's | 2688 Watts | 9156 BTU's |
C4C-760-22 | 22 | 1350mm | 53 1/8 “ | 2222 Watts | 7568 BTU's | 2816 Watts | 9592 BTU's |
C4C-760-23 | 23 | 1410mm | 55 1/2 “ | 2323 Watts | 7912 BTU's | 2944 Watts | 10028 BTU's |
C4C-760-24 | 24 | 1470mm | 57 7/8 “ | 2424 Watts | 8256 BTU's | 3072 Watts | 10464 BTU's |
C4C-760-25 | 25 | 1530mm | 60 1/4 “ | 2525 Watts | 8600 BTU's | 3200 Watts | 10900 BTU's |
C4C-760-26 | 26 | 1590mm | 62 5/8 “ | 2626 Watts | 8944 BTU's | 3328 Watts | 11336 BTU's |
C4C-760-27 | 27 | 1650mm | 65 “ | 2727 Watts | 9288 BTU's | 3456 Watts | 11772 BTU's |
C4C-760-28 | 28 | 1710mm | 67 3/8 “ | 2828 Watts | 9632 BTU's | 3584 Watts | 12208 BTU's |
C4C-760-29 | 29 | 1770mm | 69 5/8 “ | 2929 Watts | 9976 BTU's | 3712 Watts | 12644 BTU's |
C4C-760-30 | 30 | 1830mm | 72 “ | 3030 Watts | 10320 BTU's | 3840 Watts | 13080 BTU's |
C4C-760-31 | 31 | 1890mm | 74 3/8 “ | 3131 Watts | 10664 BTU's | 3968 Watts | 13516 BTU's |
C4C-760-32 | 32 | 1950mm | 76 3/4 “ | 3232 Watts | 11008 BTU's | 4096 Watts | 13952 BTU's |
C4C-760-33 | 33 | 2010mm | 79 1/8 “ | 3333 Watts | 11352 BTU's | 4224 Watts | 14388 BTU's |
C4C-760-34 | 34 | 2070mm | 81 1/2 “ | 3434 Watts | 11696 BTU's | 4352 Watts | 14824 BTU's |
C4C-760-35 | 35 | 2130mm | 83 7/8 “ | 3535 Watts | 12040 BTU's | 4480 Watts | 15260 BTU's |
C4C-760-36 | 36 | 2190mm | 86 1/4 “ | 3636 Watts | 12384 BTU's | 4608 Watts | 15696 BTU's |
C4C-760-37 | 37 | 2250mm | 88 5/8 “ | 3737 Watts | 12728 BTU's | 4736 Watts | 16132 BTU's |
![]() |
![]() |
![]() |
![]() |
![]() |
Antique Brass Manual Crocus Valve | Antique Brass Thermostatic Crocus Valve | Nickel Thermostatic Crocus Valve | Traditional Bleed Valves | CRANE Wall Stay |
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
