Six Column CRANE Cast Iron Radiators - 660mm height
- Description
Six Column Cast Iron Radiators from CRANE are available in 4 traditional heights. 6 Column 660mm CRANE Cast Iron Radiators have been assembled and manufactured for decades at this popular height.

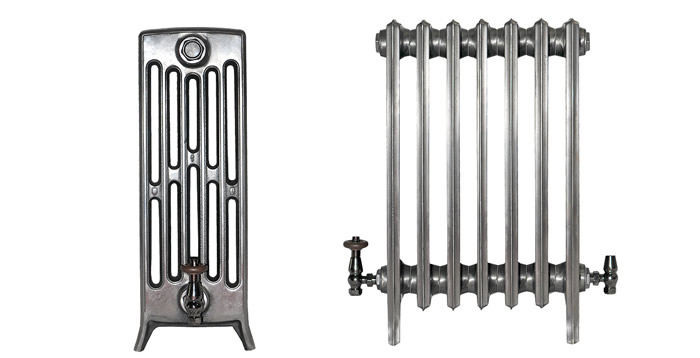

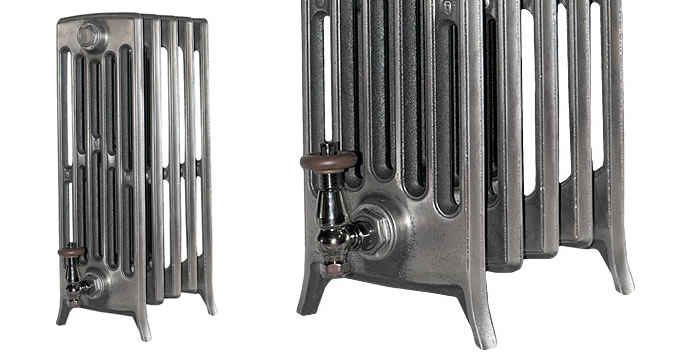

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Technical Data
- <

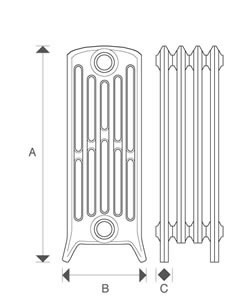

Section Height A 655mm BTU's per section 546 Watts per section 160 Radiator Depth B 221mm Section Length C 60mm
All Cast Iron Radiator sections are tested for vertical and horizontal tollerances.Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tollerance <0.1% Section Height Tollerance <0.1% Section Perpendicular Tollerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001% - Specification Table
-
<
CRANE 6 Column 660mm Cast Iron Radiator
Radiator Height:
655mm
( 25 3/4 “ )
Radiator Depth:
221mm
( 8 3/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's C6C-660-03 3 210mm 8 1/4 “ 381 Watts 1299 BTU's 480 Watts 1638 BTU's C6C-660-04 4 270mm 10 5/8 “ 508 Watts 1732 BTU's 640 Watts 2184 BTU's C6C-660-05 5 330mm 13 “ 635 Watts 2165 BTU's 800 Watts 2730 BTU's C6C-660-06 6 390mm 15 3/8 “ 762 Watts 2598 BTU's 960 Watts 3276 BTU's C6C-660-07 7 450mm 17 3/4 “ 889 Watts 3031 BTU's 1120 Watts 3822 BTU's C6C-660-08 8 510mm 20 1/8 “ 1016 Watts 3464 BTU's 1280 Watts 4368 BTU's C6C-660-09 9 570mm 22 1/2 “ 1143 Watts 3897 BTU's 1440 Watts 4914 BTU's C6C-660-10 10 630mm 24 3/4 “ 1270 Watts 4330 BTU's 1600 Watts 5460 BTU's C6C-660-11 11 690mm 27 1/8 “ 1397 Watts 4763 BTU's 1760 Watts 6006 BTU's C6C-660-12 12 750mm 29 1/2 “ 1524 Watts 5196 BTU's 1920 Watts 6552 BTU's C6C-660-13 13 810mm 31 7/8 “ 1651 Watts 5629 BTU's 2080 Watts 7098 BTU's C6C-660-14 14 870mm 34 1/4 “ 1778 Watts 6062 BTU's 2240 Watts 7644 BTU's C6C-660-15 15 930mm 36 5/8 “ 1905 Watts 6495 BTU's 2400 Watts 8190 BTU's C6C-660-16 16 990mm 39 “ 2032 Watts 6928 BTU's 2560 Watts 8736 BTU's C6C-660-17 17 1050mm 41 3/8 “ 2159 Watts 7361 BTU's 2720 Watts 9282 BTU's C6C-660-18 18 1110mm 43 3/4 “ 2286 Watts 7794 BTU's 2880 Watts 9828 BTU's C6C-660-19 19 1170mm 46 1/8 “ 2413 Watts 8227 BTU's 3040 Watts 10374 BTU's C6C-660-20 20 1230mm 48 3/8 “ 2540 Watts 8660 BTU's 3200 Watts 10920 BTU's C6C-660-21 21 1290mm 50 3/4 “ 2667 Watts 9093 BTU's 3360 Watts 11466 BTU's C6C-660-22 22 1350mm 53 1/8 “ 2794 Watts 9526 BTU's 3520 Watts 12012 BTU's C6C-660-23 23 1410mm 55 1/2 “ 2921 Watts 9959 BTU's 3680 Watts 12558 BTU's C6C-660-24 24 1470mm 57 7/8 “ 3048 Watts 10392 BTU's 3840 Watts 13104 BTU's C6C-660-25 25 1530mm 60 1/4 “ 3175 Watts 10825 BTU's 4000 Watts 13650 BTU's C6C-660-26 26 1590mm 62 5/8 “ 3302 Watts 11258 BTU's 4160 Watts 14196 BTU's C6C-660-27 27 1650mm 65 “ 3429 Watts 11691 BTU's 4320 Watts 14742 BTU's C6C-660-28 28 1710mm 67 3/8 “ 3556 Watts 12124 BTU's 4480 Watts 15288 BTU's C6C-660-29 29 1770mm 69 5/8 “ 3683 Watts 12557 BTU's 4640 Watts 15834 BTU's C6C-660-30 30 1830mm 72 “ 3810 Watts 12990 BTU's 4800 Watts 16380 BTU's C6C-660-31 31 1890mm 74 3/8 “ 3937 Watts 13423 BTU's 4960 Watts 16926 BTU's C6C-660-32 32 1950mm 76 3/4 “ 4064 Watts 13856 BTU's 5120 Watts 17472 BTU's C6C-660-33 33 2010mm 79 1/8 “ 4191 Watts 14289 BTU's 5280 Watts 18018 BTU's C6C-660-34 34 2070mm 81 1/2 “ 4318 Watts 14722 BTU's 5440 Watts 18564 BTU's C6C-660-35 35 2130mm 83 7/8 “ 4445 Watts 15155 BTU's 5600 Watts 19110 BTU's C6C-660-36 36 2190mm 86 1/4 “ 4572 Watts 15588 BTU's 5760 Watts 19656 BTU's C6C-660-37 37 2250mm 88 5/8 “ 4699 Watts 16021 BTU's 5920 Watts 20202 BTU's - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
