Six Column CRANE Cast Iron Radiators - 760mm height
- Description
6 Column CRANE Cast Iron Radiators at 760mm or 26 inches tall are a popular radiator in a range of settings. These high heat output CRANE Cast Iron Radiators are available in 4 historic heights.

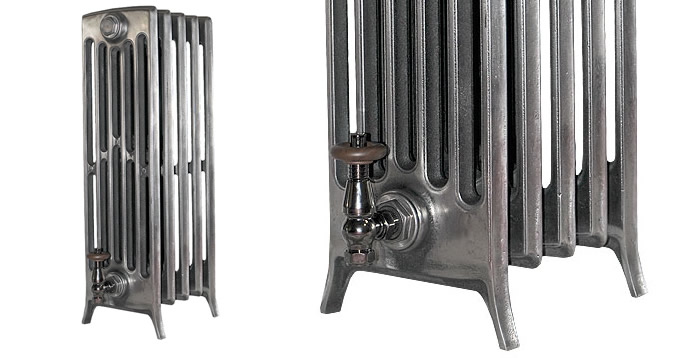

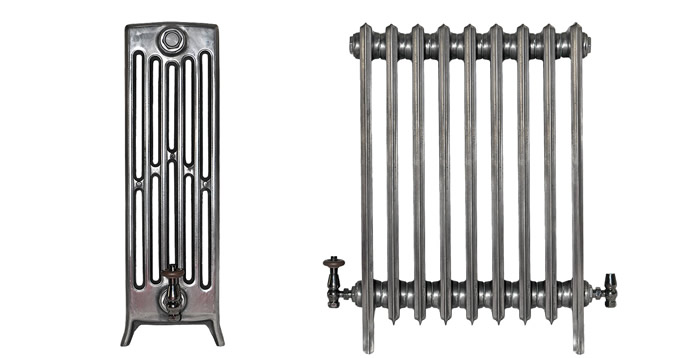

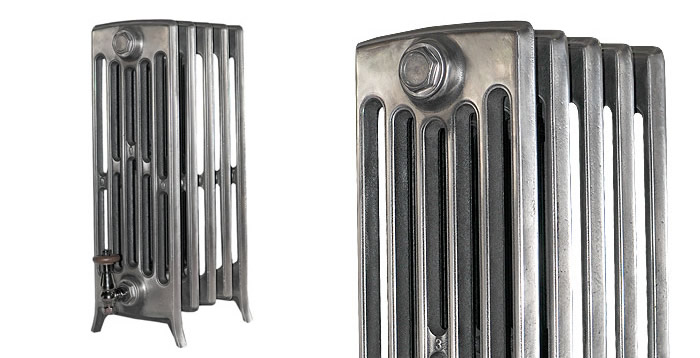

CRANE 6 Column Cast Iron Radiators are a timeless design from the 1930's. With clean crisp casting lines, an elegantly rounded smooth shoulder and bold splayed feet - this is we believe the definitive 6 Column Cast Iron Radiator design. Don't settle for any imitation or anything less than a CRANE 6 Column Cast Iron Radiator, cast in Europe, guaranteed for 100 years and finished in one of our many beautiful paints or polished finishes.
All CRANE Cast Iron Radiators are designed to complement each other and are available in a range of traditional heights, sizes and finishes.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data

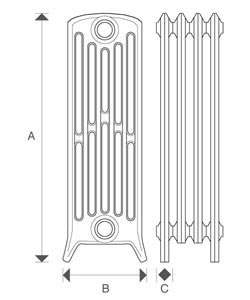

Section Height A 762mm BTU's per section 638 Watts per section 187 Radiator Depth B 221mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE 6 Column 760mm Cast Iron Radiator
Radiator Height:
762mm
( 30 “ )
Radiator Depth:
221mm
( 8 3/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's C6C-760-03 3 210mm 8 1/4 “ 444 Watts 1515 BTU's 561 Watts 1914 BTU's C6C-760-04 4 270mm 10 5/8 “ 592 Watts 2020 BTU's 748 Watts 2552 BTU's C6C-760-05 5 330mm 13 “ 740 Watts 2525 BTU's 935 Watts 3190 BTU's C6C-760-06 6 390mm 15 3/8 “ 888 Watts 3030 BTU's 1122 Watts 3828 BTU's C6C-760-07 7 450mm 17 3/4 “ 1036 Watts 3535 BTU's 1309 Watts 4466 BTU's C6C-760-08 8 510mm 20 1/8 “ 1184 Watts 4040 BTU's 1496 Watts 5104 BTU's C6C-760-09 9 570mm 22 1/2 “ 1332 Watts 4545 BTU's 1683 Watts 5742 BTU's C6C-760-10 10 630mm 24 3/4 “ 1480 Watts 5050 BTU's 1870 Watts 6380 BTU's C6C-760-11 11 690mm 27 1/8 “ 1628 Watts 5555 BTU's 2057 Watts 7018 BTU's C6C-760-12 12 750mm 29 1/2 “ 1776 Watts 6060 BTU's 2244 Watts 7656 BTU's C6C-760-13 13 810mm 31 7/8 “ 1924 Watts 6565 BTU's 2431 Watts 8294 BTU's C6C-760-14 14 870mm 34 1/4 “ 2072 Watts 7070 BTU's 2618 Watts 8932 BTU's C6C-760-15 15 930mm 36 5/8 “ 2220 Watts 7575 BTU's 2805 Watts 9570 BTU's C6C-760-16 16 990mm 39 “ 2368 Watts 8080 BTU's 2992 Watts 10208 BTU's C6C-760-17 17 1050mm 41 3/8 “ 2516 Watts 8585 BTU's 3179 Watts 10846 BTU's C6C-760-18 18 1110mm 43 3/4 “ 2664 Watts 9090 BTU's 3366 Watts 11484 BTU's C6C-760-19 19 1170mm 46 1/8 “ 2812 Watts 9595 BTU's 3553 Watts 12122 BTU's C6C-760-20 20 1230mm 48 3/8 “ 2960 Watts 10100 BTU's 3740 Watts 12760 BTU's C6C-760-21 21 1290mm 50 3/4 “ 3108 Watts 10605 BTU's 3927 Watts 13398 BTU's C6C-760-22 22 1350mm 53 1/8 “ 3256 Watts 11110 BTU's 4114 Watts 14036 BTU's C6C-760-23 23 1410mm 55 1/2 “ 3404 Watts 11615 BTU's 4301 Watts 14674 BTU's C6C-760-24 24 1470mm 57 7/8 “ 3552 Watts 12120 BTU's 4488 Watts 15312 BTU's C6C-760-25 25 1530mm 60 1/4 “ 3700 Watts 12625 BTU's 4675 Watts 15950 BTU's C6C-760-26 26 1590mm 62 5/8 “ 3848 Watts 13130 BTU's 4862 Watts 16588 BTU's C6C-760-27 27 1650mm 65 “ 3996 Watts 13635 BTU's 5049 Watts 17226 BTU's C6C-760-28 28 1710mm 67 3/8 “ 4144 Watts 14140 BTU's 5236 Watts 17864 BTU's C6C-760-29 29 1770mm 69 5/8 “ 4292 Watts 14645 BTU's 5423 Watts 18502 BTU's C6C-760-30 30 1830mm 72 “ 4440 Watts 15150 BTU's 5610 Watts 19140 BTU's C6C-760-31 31 1890mm 74 3/8 “ 4588 Watts 15655 BTU's 5797 Watts 19778 BTU's C6C-760-32 32 1950mm 76 3/4 “ 4736 Watts 16160 BTU's 5984 Watts 20416 BTU's C6C-760-33 33 2010mm 79 1/8 “ 4884 Watts 16665 BTU's 6171 Watts 21054 BTU's C6C-760-34 34 2070mm 81 1/2 “ 5032 Watts 17170 BTU's 6358 Watts 21692 BTU's C6C-760-35 35 2130mm 83 7/8 “ 5180 Watts 17675 BTU's 6545 Watts 22330 BTU's C6C-760-36 36 2190mm 86 1/4 “ 5328 Watts 18180 BTU's 6732 Watts 22968 BTU's C6C-760-37 37 2250mm 88 5/8 “ 5476 Watts 18685 BTU's 6919 Watts 23606 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
