CRANE Baroque Cast Iron Radiators - 660mm height
- Description
CRANE® Baroque Cast Iron Radiators are available in four heights. The traditional 660mm or 26 inch casting is perhaps the most popular in this series because of its elegant proportions and suitability for most settings.

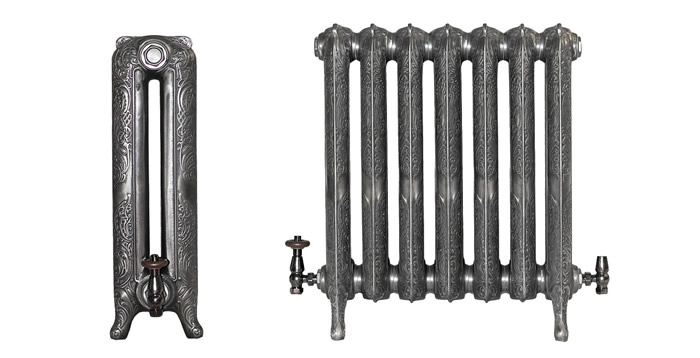

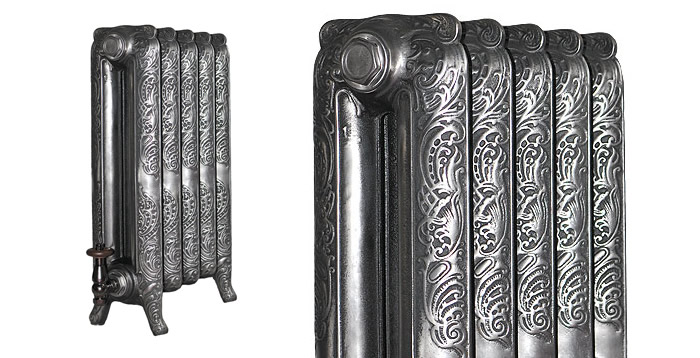

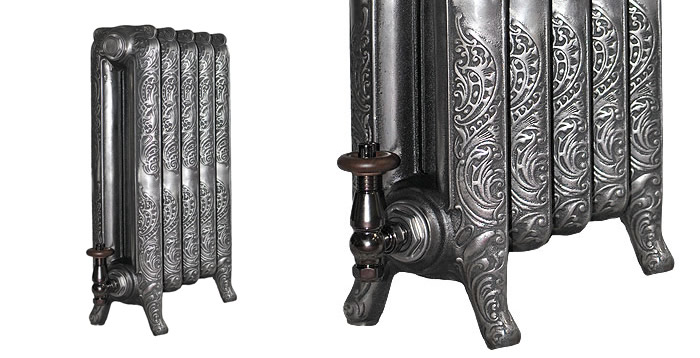

These beautiful CRANE Cast Iron Radiators feature two columns of elegant scalloped decoration from the late Victorian period, delicately cast and with exquisite details. The stylised bohemian foliage extends from the middle of each section to the bottom of the feet and across the shoulders of each CRANE Cast Iron Radiator. A timeless design classic, made using original moulds using traditional techniques. CRANE Cast Iron Radiators have been used in stately homes and the finest homes since the early years of the 20th century.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data
Section Height A 660mm BTU's per section 457 Watts per section 134 Radiator Depth B 184.5mm Section Length C 76mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE Baroque 660mm Cast Iron Radiators
Radiator Height:
660mm
( 26 “ )
Radiator Depth:
184.5mm
( 7 1/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's CBQ-660-03 3 258mm 10 1/8 “ 315 Watts 1074 BTU's 402 Watts 1371 BTU's CBQ-660-04 4 334mm 13 1/8 “ 420 Watts 1432 BTU's 536 Watts 1828 BTU's CBQ-660-05 5 410mm 16 1/8 “ 525 Watts 1790 BTU's 670 Watts 2285 BTU's CBQ-660-06 6 486mm 19 1/8 “ 630 Watts 2148 BTU's 804 Watts 2742 BTU's CBQ-660-07 7 562mm 22 1/8 “ 735 Watts 2506 BTU's 938 Watts 3199 BTU's CBQ-660-08 8 638mm 25 1/8 “ 840 Watts 2864 BTU's 1072 Watts 3656 BTU's CBQ-660-09 9 714mm 28 1/8 “ 945 Watts 3222 BTU's 1206 Watts 4113 BTU's CBQ-660-10 10 790mm 31 1/8 “ 1050 Watts 3580 BTU's 1340 Watts 4570 BTU's CBQ-660-11 11 866mm 34 1/8 “ 1155 Watts 3938 BTU's 1474 Watts 5027 BTU's CBQ-660-12 12 942mm 37 1/8 “ 1260 Watts 4296 BTU's 1608 Watts 5484 BTU's CBQ-660-13 13 1018mm 40 1/8 “ 1365 Watts 4654 BTU's 1742 Watts 5941 BTU's CBQ-660-14 14 1094mm 43 1/8 “ 1470 Watts 5012 BTU's 1876 Watts 6398 BTU's CBQ-660-15 15 1170mm 46 1/8 “ 1575 Watts 5370 BTU's 2010 Watts 6855 BTU's CBQ-660-16 16 1246mm 49 “ 1680 Watts 5728 BTU's 2144 Watts 7312 BTU's CBQ-660-17 17 1322mm 52 “ 1785 Watts 6086 BTU's 2278 Watts 7769 BTU's CBQ-660-18 18 1398mm 55 “ 1890 Watts 6444 BTU's 2412 Watts 8226 BTU's CBQ-660-19 19 1474mm 58 “ 1995 Watts 6802 BTU's 2546 Watts 8683 BTU's CBQ-660-20 20 1550mm 61 “ 2100 Watts 7160 BTU's 2680 Watts 9140 BTU's CBQ-660-21 21 1626mm 64 “ 2205 Watts 7518 BTU's 2814 Watts 9597 BTU's CBQ-660-22 22 1702mm 67 “ 2310 Watts 7876 BTU's 2948 Watts 10054 BTU's CBQ-660-23 23 1778mm 70 “ 2415 Watts 8234 BTU's 3082 Watts 10511 BTU's CBQ-660-24 24 1854mm 73 “ 2520 Watts 8592 BTU's 3216 Watts 10968 BTU's CBQ-660-25 25 1930mm 76 “ 2625 Watts 8950 BTU's 3350 Watts 11425 BTU's CBQ-660-26 26 2006mm 79 “ 2730 Watts 9308 BTU's 3484 Watts 11882 BTU's CBQ-660-27 27 2082mm 82 “ 2835 Watts 9666 BTU's 3618 Watts 12339 BTU's CBQ-660-28 28 2158mm 85 “ 2940 Watts 10024 BTU's 3752 Watts 12796 BTU's CBQ-660-29 29 2234mm 88 “ 3045 Watts 10382 BTU's 3886 Watts 13253 BTU's CBQ-660-30 30 2310mm 91 “ 3150 Watts 10740 BTU's 4020 Watts 13710 BTU's CBQ-660-31 31 2386mm 93 7/8 “ 3255 Watts 11098 BTU's 4154 Watts 14167 BTU's CBQ-660-32 32 2462mm 96 7/8 “ 3360 Watts 11456 BTU's 4288 Watts 14624 BTU's CBQ-660-33 33 2538mm 99 7/8 “ 3465 Watts 11814 BTU's 4422 Watts 15081 BTU's CBQ-660-34 34 2614mm 102 7/8 “ 3570 Watts 12172 BTU's 4556 Watts 15538 BTU's CBQ-660-35 35 2690mm 105 7/8 “ 3675 Watts 12530 BTU's 4690 Watts 15995 BTU's CBQ-660-36 36 2766mm 108 7/8 “ 3780 Watts 12888 BTU's 4824 Watts 16452 BTU's CBQ-660-37 37 2842mm 111 7/8 “ 3885 Watts 13246 BTU's 4958 Watts 16909 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
