CRANE Baroque Cast Iron Radiators - 960mm height
- Description
CRANE® Baroque Cast Iron Radiators are available in 4 complementary heights allowing you to use this beautiful decorative casting throughout your home. The tall elegant 960mm or 38inch casting has been manufactured for those rooms that require the highest heat output possible. These stylish cast iron radiators deliver a high heat output and are a beautiful feature in any room.

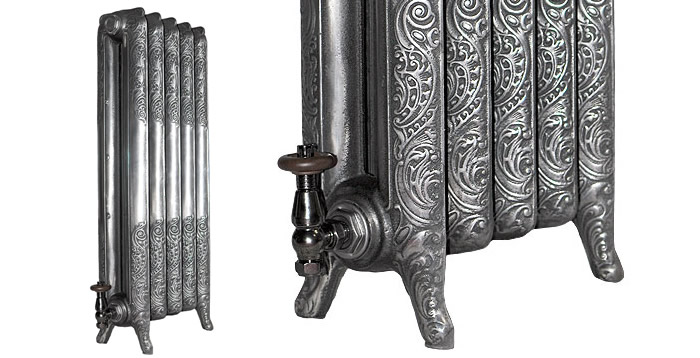

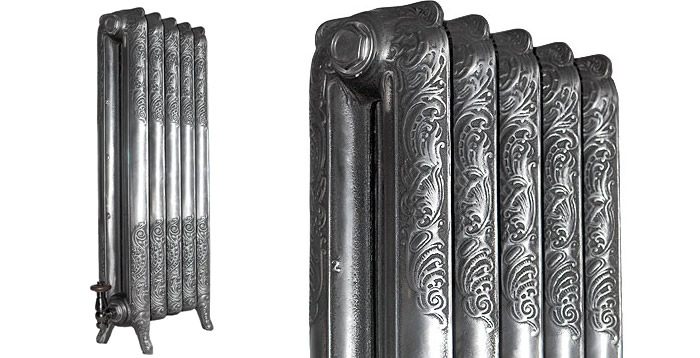

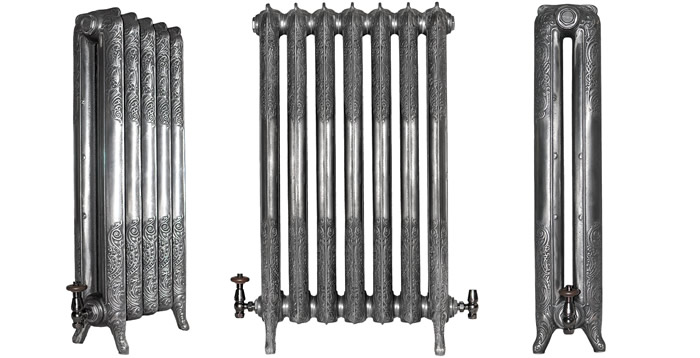

These beautiful CRANE Cast Iron Radiators feature two columns of elegant scalloped decoration from the late Victorian period, delicately cast and with exquisite details. The stylised bohemian foliage extends from the middle of each section to the bottom of the feet and across the shoulders of each CRANE Cast Iron Radiator. A timeless design classic, made using original moulds using traditional techniques. CRANE Cast Iron Radiators have been used in stately homes and the finest homes since the early years of the 20th century.
This traditional range of cast iron radiators have a 100 year guarantee on all castings, a level of confidence that is only available with CRANE cast iron radiators.
- Customisation and Finishes
CRANE Cast Iron Radiators are all cast in Europe and assembled and finished at our state of the art factory in Britain.
CRANE Radiators are available painted in any RAL Colour, we prefer to use Traditional Sanderson paint on CRANE Cast Iron Radiators.
Alternatively, CRANE Radiators look fantastic when polished to a satin finish or near mirror finish.
- Technical Data
Section Height A 955mm BTU's per section 641 Watts per section 188 Radiator Depth B 184.5mm Section Length C 76mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.- Specification Table
-
CRANE Baroque 960mm Cast Iron Radiators
Radiator Height:
955mm
( 37 5/8 “ )
Radiator Depth:
184.5mm
( 7 1/4 “ )
Product Sections Radiator Width (L) Heat Output (ΔT=50) Heat Output (ΔT=60) Code (No.) mm Inches Watts BTU's Watts BTU's CBQ-960-03 3 258mm 10 1/8 “ 444 Watts 1515 BTU's 564 Watts 1923 BTU's CBQ-960-04 4 334mm 13 1/8 “ 592 Watts 2020 BTU's 752 Watts 2564 BTU's CBQ-960-05 5 410mm 16 1/8 “ 740 Watts 2525 BTU's 940 Watts 3205 BTU's CBQ-960-06 6 486mm 19 1/8 “ 888 Watts 3030 BTU's 1128 Watts 3846 BTU's CBQ-960-07 7 562mm 22 1/8 “ 1036 Watts 3535 BTU's 1316 Watts 4487 BTU's CBQ-960-08 8 638mm 25 1/8 “ 1184 Watts 4040 BTU's 1504 Watts 5128 BTU's CBQ-960-09 9 714mm 28 1/8 “ 1332 Watts 4545 BTU's 1692 Watts 5769 BTU's CBQ-960-10 10 790mm 31 1/8 “ 1480 Watts 5050 BTU's 1880 Watts 6410 BTU's CBQ-960-11 11 866mm 34 1/8 “ 1628 Watts 5555 BTU's 2068 Watts 7051 BTU's CBQ-960-12 12 942mm 37 1/8 “ 1776 Watts 6060 BTU's 2256 Watts 7692 BTU's CBQ-960-13 13 1018mm 40 1/8 “ 1924 Watts 6565 BTU's 2444 Watts 8333 BTU's CBQ-960-14 14 1094mm 43 1/8 “ 2072 Watts 7070 BTU's 2632 Watts 8974 BTU's CBQ-960-15 15 1170mm 46 1/8 “ 2220 Watts 7575 BTU's 2820 Watts 9615 BTU's CBQ-960-16 16 1246mm 49 “ 2368 Watts 8080 BTU's 3008 Watts 10256 BTU's CBQ-960-17 17 1322mm 52 “ 2516 Watts 8585 BTU's 3196 Watts 10897 BTU's CBQ-960-18 18 1398mm 55 “ 2664 Watts 9090 BTU's 3384 Watts 11538 BTU's CBQ-960-19 19 1474mm 58 “ 2812 Watts 9595 BTU's 3572 Watts 12179 BTU's CBQ-960-20 20 1550mm 61 “ 2960 Watts 10100 BTU's 3760 Watts 12820 BTU's CBQ-960-21 21 1626mm 64 “ 3108 Watts 10605 BTU's 3948 Watts 13461 BTU's CBQ-960-22 22 1702mm 67 “ 3256 Watts 11110 BTU's 4136 Watts 14102 BTU's CBQ-960-23 23 1778mm 70 “ 3404 Watts 11615 BTU's 4324 Watts 14743 BTU's CBQ-960-24 24 1854mm 73 “ 3552 Watts 12120 BTU's 4512 Watts 15384 BTU's CBQ-960-25 25 1930mm 76 “ 3700 Watts 12625 BTU's 4700 Watts 16025 BTU's CBQ-960-26 26 2006mm 79 “ 3848 Watts 13130 BTU's 4888 Watts 16666 BTU's CBQ-960-27 27 2082mm 82 “ 3996 Watts 13635 BTU's 5076 Watts 17307 BTU's CBQ-960-28 28 2158mm 85 “ 4144 Watts 14140 BTU's 5264 Watts 17948 BTU's CBQ-960-29 29 2234mm 88 “ 4292 Watts 14645 BTU's 5452 Watts 18589 BTU's CBQ-960-30 30 2310mm 91 “ 4440 Watts 15150 BTU's 5640 Watts 19230 BTU's CBQ-960-31 31 2386mm 93 7/8 “ 4588 Watts 15655 BTU's 5828 Watts 19871 BTU's CBQ-960-32 32 2462mm 96 7/8 “ 4736 Watts 16160 BTU's 6016 Watts 20512 BTU's CBQ-960-33 33 2538mm 99 7/8 “ 4884 Watts 16665 BTU's 6204 Watts 21153 BTU's CBQ-960-34 34 2614mm 102 7/8 “ 5032 Watts 17170 BTU's 6392 Watts 21794 BTU's CBQ-960-35 35 2690mm 105 7/8 “ 5180 Watts 17675 BTU's 6580 Watts 22435 BTU's CBQ-960-36 36 2766mm 108 7/8 “ 5328 Watts 18180 BTU's 6768 Watts 23076 BTU's CBQ-960-37 37 2842mm 111 7/8 “ 5476 Watts 18685 BTU's 6956 Watts 23717 BTU's - Accessories
- We have a range of complimentary Accessories for your CRANE Cast Iron Radiators
Antique Brass Manual Crocus Valve Antique Brass Thermostatic Crocus Valve Nickel Thermostatic Crocus Valve Traditional Bleed Valves CRANE Wall Stay - Find a Stockist
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are cast in Europe and assembled in Britain. We have the strictest quality control in the industry and no other supplier of traditional cast iron radiators only works with European foundries.
Find a Stockist
Download Spec Sheet of this Cast Iron Radiator
